High purity conductive double sided adhesive carbon tabs and tapes
Especially developed for SEM / EDS applications the material used for both the carbon tabs and carbon tapes is fully transparent for EDS with only trace amounts of Al and Si. The material is constructed using a non-woven liner coated on both sides with a conductive, carbon filled, pressure sensitive acrylic adhesive. The total thickness of the material is approximately 125µm with an adhesive thickness of 45µm on both sides. The adhesive used has a high adhesion strength to metals, plastics, ceramics, wafers, rubber, wood, glass, paper, and small particles or fibres. The conductivity of the carbon tapes and tabs is lower than the conductivity of our double-sided copper tape.
EM-Tec double sided carbon tabs and carbon tapes:
- Thin material, 125µm total with 45µm on each side of a 35µm non-woven carrier
- Plastic liner on both sides
- Temperature range -20°C to + 60°C
- Low outgassing rates
- Fully EDS transparent high purity for EDS applications
- High strength thin adhesive (2 x 45µm) combined with high tack
- Long shelf life and can be stored in a refrigerator
- Resistance: 50K-200K
High purity, conductive, double sided, adhesive carbon tabs
High purity conductive double sided adhesive carbon tabs are supplied on a clear plastic sheet with a white plastic liner tab. Available as Ø6mm, Ø9mm, Ø12mm and Ø25mm carbon tabs.
To use: Lift the tab from the clear backing sheet, press the sticky surface to the mount, then peel away the white liner tab leaving the adhesive exposed. Mount your specimen on the exposed adhesive. Alternatively, the white liner tab can be removed, the stub pressed on the exposed carbon tab and the clear plastic lifted off. Sharp pointed tweezers can used to lift the tab from the liner. Carbon tabs can be easily removed with isopropanol, ethyl acetate, ethanol or acetone.
EM-Tec Easy-Tabs conductive double sided high purity carbon tabs
EM-Tec Easy-Tabs are made from the same material as the standard high purity carbon tabs, but handling is made much easier by providing an easy to lift off white liner tab.
To use: lift the carbon Easy-Tab of the clear backing strip, press the exposed adhesive surface on the stub and then remove the white liner Easy-Tab just before mounting the sample. The EM-Tec Easy-Tabs carbon tabs can be easily removed with isopropanol, ethyl acetate, ethanol or acetone. EM-Tec Easy-Tabs are available in two sizes:
- Ø12.5mm EM-Tec Easy-Tabs are compatible with the standard Ø12.7mm pin stubs
- Ø25mm EM-Tec Easy-Tabs are compatible with the standard Ø25.4mm pin stubs, Ø25mm JEOL stubs and Ø25mm Hitachi stubs
High purity, conductive, double sided, adhesive carbon tapes
The material used is identical to that used on the tabs with one difference – tapes are self-wound with a thin white liner on one side of the tape. The tape can be shaped into custom forms, strips and cut-outs. Available with 8mm, 12mm and 20mm width and 20m long.
To use: Cut to the required length from the roll and cut to shape if needed (with care since one side has exposed adhesive). Adhere tape to the specimen support, remove the top liner and adhere specimen to the tape. Sharp pointed tweezers can be used to lift the liner from the adhesive. Carbon tape can be removed with isopropanol, ethyl acetate, ethanol or acetone.
For very fine samples such as powders and fibres we recommend the use of our super smooth carbon tabs
Ordering information:
-
High purity conductive double-sided adhesive carbon tabs
High purity conductive double-sided adhesive carbon tabs- dia.12mm (pkg/100)
£14.11 Add to basket -
High purity conductive double-sided adhesive carbon tabs
High purity conductive double-sided adhesive carbon tabs- dia.25mm (pkg/54)
£24.90 Add to basket -
High purity conductive double-sided adhesive carbon tabs
EM-Tec CT6 high purity conductive double-sided adhesive carbon tabs- Ø6mm (pkg/108)
£14.11 Add to basket -
High purity conductive double-sided adhesive carbon tabs
EM-Tec CT9 high purity conductive double-sided adhesive carbon tabs- dia.9mm (pkg/104)
£14.11 Add to basket -
EM-Tec Easy-Tabs ECT12 high purity conductive double sided adhesive carbon tabs, Ø12.5mm
EM-Tec Easy-Tabs ECT12 high purity conductive double sided adhesive carbon tabs, Ø12.5mm(pkg/100)
£18.98 Add to basket -
EM-Tec CT15 high purity conductive double sided adhesive carbon tabs, Ø15 mm
EM-Tec CT15 high purity conductive double sided adhesive carbon tabs, Ø15 mm(pkg/96)
£14.23 Add to basket -
EM-Tec Easy-Tabs ECT25 high purity conductive double sided adhesive carbon tabs, Ø25mm
EM-Tec Easy-Tabs ECT25 high purity conductive double sided adhesive carbon tabs, Ø25mm(pkg/50)
£29.42 Add to basket -
EM-Tec CT32 high purity conductive double sided adhesive carbon tabs, Ø32mm
EM-Tec CT32 high purity conductive double sided adhesive carbon tabs, Ø32mm(pkg/24)
£14.23 Add to basket
-
Conductive double-sided adhesive carbon tape – 5mm W x 20m L
Conductive double-sided adhesive carbon tape – 5mm wide x 20m long (each)
£18.12 Add to basket -

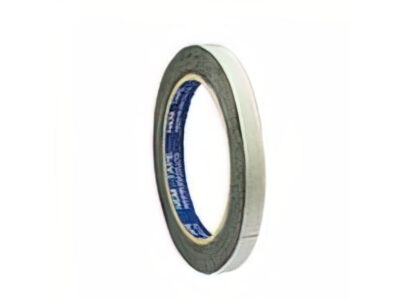

Conductive double-sided adhesive carbon tape – 8mm W x 20m L
Conductive double-sided adhesive carbon tape – 8mm wide x 20m long (each)
£22.71 Add to basket -

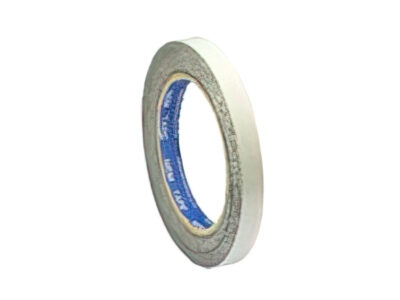

Conductive double-sided adhesive carbon tape – 12mm W x 20m L
Conductive double-sided adhesive carbon tape – 12mm wide x 20m long (each)
£36.96 Add to basket -

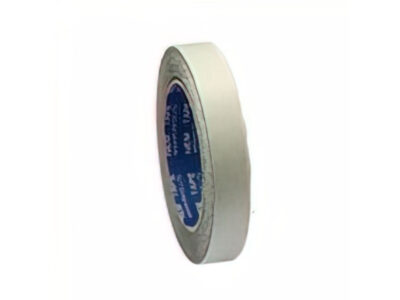

Conductive double-sided adhesive carbon tape – 20mm W x 20m L
Conductive double-sided adhesive carbon tape – 20mm wide x 20m long (each)
£47.14 Add to basket -
Conductive double-sided adhesive carbon tape – 50mm wide x 20m long
Conductive double-sided adhesive carbon tape – 50mm wide x 20m long (each)
£109.52 Add to basket
